Background

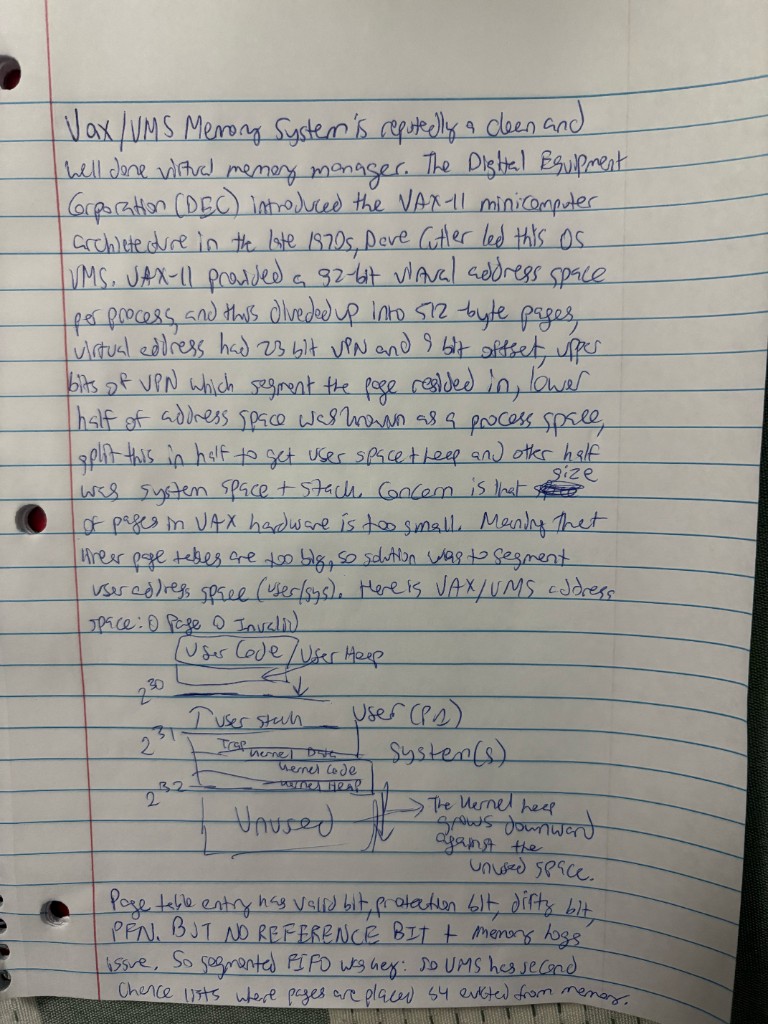

VAX/VMS — reputedly a clean, well-done virtual memory manager. DEC introduced the VAX-11 in the late 1970s; Dave Cutler led the VMS OS.

Hardware sketch

VA	32-bit per process
Page size	512 bytes (too small → big page tables)
VPN	23 bits
Offset	9 bits

Upper VPN bits select which segment the page lives in.

Why segment?

512B pages → linear page tables get huge. Fix: segment the address space (user / system).

Address space layout

0 ─────────────── Page 0 invalid
│  User code / user heap     (P0)
│    heap grows ↓
2³⁰ ─────────────
│  User stack                (P1)
2³¹ ─────────────
│  System (S)
│    trap, kernel data/code
│    kernel heap ↓ against unused
2³² ─────────────
   Unused

PTE bits

Valid, protection, dirty, PFN — but no reference bit. That hurts replacement (memory hogs).

Replacement: segmented FIFO

VMS uses segmented FIFO with second-chance lists — pages land there as they're evicted, getting another shot before they're really gone.
